VA to Watts Calculator

Understanding the conversion from Volt-Amperes (VA) to Watts (W) is crucial for accurate power measurement in electrical systems. This calculation helps determine the real power consumed by devices, considering power factor variations.

This article explores the technical aspects of VA to Watts conversion, including formulas, tables, and practical examples. It aims to provide a comprehensive guide for engineers, electricians, and technical professionals.

Artificial Intelligence (AI) Calculator for “VA to Watts Calculator”

• Convert 500 VA to Watts with a power factor of 0.8
• Calculate Watts from 1200 VA at 0.95 power factor
• Find Watts for 750 VA with power factor 0.7
• Determine Watts from 1000 VA assuming unity power factor

Comprehensive Tables for VA to Watts Conversion

Below are detailed tables showing common VA values converted to Watts at various power factors. These tables assist in quick reference and practical application in electrical design and troubleshooting.

Fundamental Formulas for VA to Watts Conversion

Converting VA to Watts requires understanding the relationship between apparent power, real power, and power factor. The key formulas are outlined below with detailed explanations.

• Real Power (Watts) Calculation:

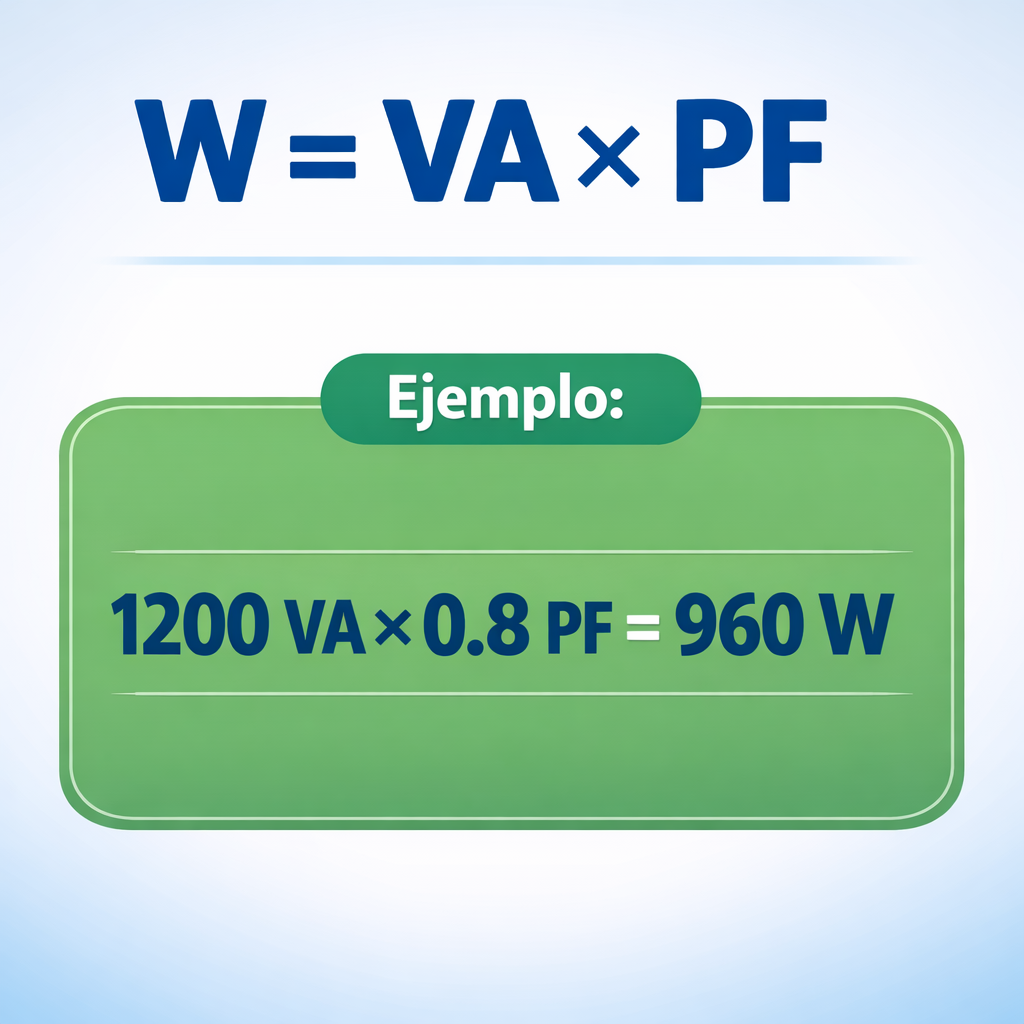

  Watts (W) = VA × Power Factor (PF)

  Where:

  • VA = Apparent power in Volt-Amperes
  • Power Factor (PF) = Cosine of the phase angle between voltage and current (range 0 to 1)
• Power Factor Definition:
  PF = Watts / VA

  This ratio indicates the efficiency of power usage. A PF of 1 means all power is used effectively.

• Apparent Power Calculation:
  VA = Volts × Amperes

  This is the product of RMS voltage and current without considering phase angle.

• Reactive Power (VAR) Calculation:
  VAR = VA × sin(θ)

  Where θ is the phase angle between voltage and current. Reactive power does not perform useful work but affects the system.

• Relationship Between Powers:
  VA² = Watts² + VAR²

  This Pythagorean relationship defines the power triangle in AC circuits.

Detailed Explanation of Variables

• Volt-Amperes (VA): Represents apparent power, combining real and reactive power components.
• Watts (W): Real power consumed or produced by the load, performing actual work.
• Power Factor (PF): Dimensionless number between 0 and 1 indicating efficiency of power usage.
• Phase Angle (θ): Angle between voltage and current waveforms, affecting power factor.
• Reactive Power (VAR): Power stored and released by inductors and capacitors, causing phase shift.

Real-World Application Examples of VA to Watts Conversion

Example 1: Calculating Watts for an Industrial Motor

An industrial motor is rated at 1500 VA with a power factor of 0.85. Determine the real power consumption in Watts.

• Given: VA = 1500, PF = 0.85
• Formula: Watts = VA × PF
• Calculation: Watts = 1500 × 0.85 = 1275 W
• Interpretation: The motor consumes 1275 Watts of real power, while the rest is reactive power.

This calculation helps in sizing electrical components and estimating energy costs accurately.

Example 2: Determining Watts for a UPS System

A UPS (Uninterruptible Power Supply) provides 2000 VA output with a power factor of 0.9. Find the real power output in Watts.

• Given: VA = 2000, PF = 0.9
• Formula: Watts = VA × PF
• Calculation: Watts = 2000 × 0.9 = 1800 W
• Interpretation: The UPS delivers 1800 Watts of usable power to connected devices.

Understanding this helps in ensuring the UPS capacity matches the load requirements.

Additional Technical Insights on VA to Watts Conversion

Power factor correction is a critical aspect in electrical systems to improve efficiency and reduce losses. Devices with low power factor draw more current for the same real power, increasing conductor size and energy costs.

Using capacitors or synchronous condensers can improve power factor, thus increasing the real power output for a given VA rating. This optimization is essential in industrial and commercial power systems.

Standards and Guidelines for Power Measurement

According to the IEEE Std 1459-2010, power measurements in AC circuits must consider the complex nature of power, including real, reactive, and apparent components. Accurate VA to Watts conversion is fundamental for compliance with these standards.

For further reading, consult authoritative sources such as the IEEE Power Measurement Standard and the NEMA Electrical Standards.

Summary of Key Points

• VA to Watts conversion depends on the power factor, reflecting real power usage.
• Power factor ranges from 0 to 1, with unity indicating maximum efficiency.
• Understanding the power triangle is essential for accurate power calculations.
• Tables provide quick reference for common VA and PF values to Watts.
• Real-world examples demonstrate practical application in industrial and UPS systems.
• Power factor correction improves system efficiency and reduces operational costs.
